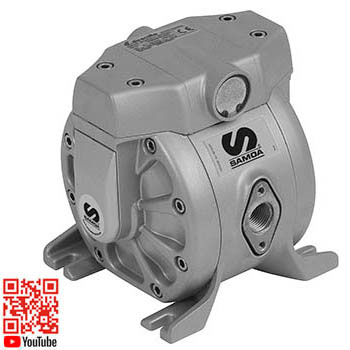

Diaphragm pump 1/2" Directflo Acetal-PTFE-PTFE

In stock

According to following spec

Download picture Download PDF

Technical data

Part No
DF50PDSTSTTBAS
Ratio
1:1
Capacity
50 l/min free flow
Air connection
3/8" (F) BSP
Maximum air pressure
0,8 (8) MPa (bar)
Inlet
1/2" (F) BSP
Outlet
1/2" (F) BSP
Seals
PTFE / Teflon®
Max suction height
8 m
Max particle size
3 (3/32) mm (inch)
Material pump body
Conductive acetal
Material diaphragm
PTFE / Teflon®
Material balls
PTFE / Teflon®
Material ball valve seats
Stainless steel (AISI 316)
Material push rod
Stainless steel (AISI 420)
Weight (Gross)
3,38 kg
H.S. Code
84138100
