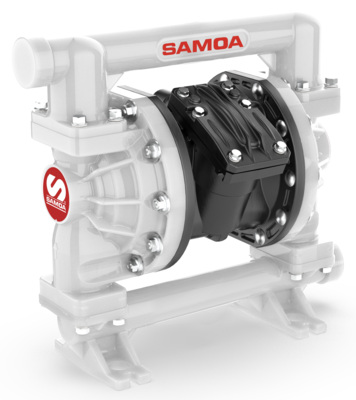

Diaphragm pump 1" PP-PTFE-PTFE

In stock

According to following spec

Download picture Download PDF

Technical data

Part No
UP10B-BPS-PTZ
Ratio
1:1
Capacity
200 l/min free flow
Air connection
1/2" (F) NPT
Maximum air pressure
0,8 (8) MPa (bar)
Inlet
1" (F) BSP
Outlet
1" (F) BSP
Seals
PTFE / Teflon®
Max suction height
8 m
Max particle size
6,4 (1/4) mm (inch)
Material pump body
Polypropylene
Material diaphragm
PTFE / Teflon®
Material balls
PTFE / Teflon®
Material ball valve seats
Polypropylene
Weight (Gross)
10,4 kg
H.S. Code
84138100
