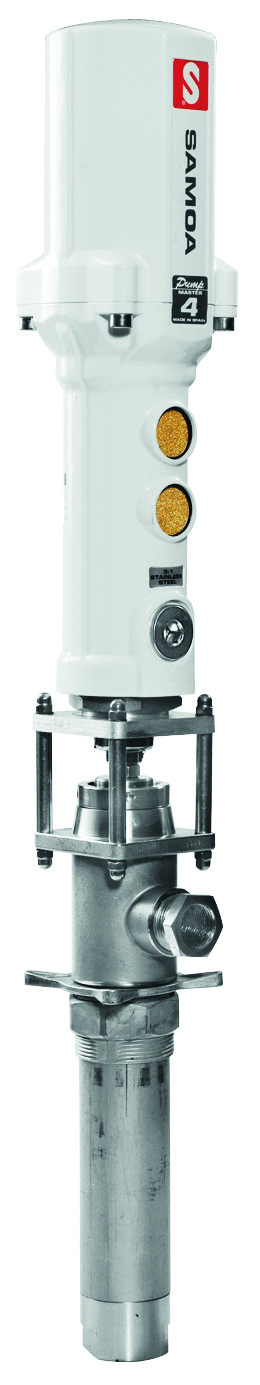

Pneumatic Piston Pump PM2 - 1:1, Stainless Steel, Stub Model

PM2 series air operated piston pumps. Double acting air operated low pressure pumps for transferring corrosive fluids. Pumps include height adjustable 2” BSP (M) bung adaptor for tank or drum bung mounting.

Technical data

Part No

331120

Ratio

1:1

Capacity

38 l/min free flow

Air connection

1/4" (F) BSP

Recommended air pressure

1,5-1,0 MPa (bar)

Inlet

1" (F) BSP

Outlet

3/4" (F) BSP

Seals

PTFE, Viton, SS

Material pump body

Stainless steel

Noise level

80 dB
